RESISTANCE mEASUREMENT bRIDGES

6640Q

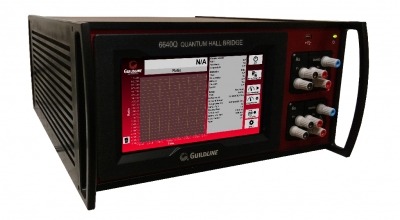

Quantum Hall Resistance (QHR) BRIDGE 6640Q

  • Best Accuracy: ± 0.015 ppm of Reading at QHR currents of            30 µA – 100 µA with Interchange
  • Fasted Measurement Speed of 2 Seconds
  • Change All Key parameters “On-the-Fly” While the Measurement is Running
  • Linearity: ± 0.005 ppm of Full ScaleResolution: ± 0.0001 ppm
  • New Built-in Windows 10 Computer and Touch Screen Display Providing Complete Measurement Results and Graphs
VIEW PRODUCT
Guildline Instruments Model 6622A Series Direct Current Comparator Resistance Bridges

Direct Current Comparator Resistance
Bridges Series 6622A

  • Widest Available Range from 1 mΩ ~1 GΩ
  • Best Accuracy: ± 0.015 ppm of Reading
  • Modular Design, Expandable Capabilities, Complete Investment Protection
  • Wide Range of Ratios: 0.1:1 ~ 100:1
VIEW PRODUCT
Guildline Instruments Resistance and Current Measurement Systems 6625A

Resistance and Current
Measurement Systems 6625A

  • Complete Turn-Key System – Fully Integrated, Wired, Tested and Ready-to-Use
  • Widest Available Resistance Range from 1 μΩ ~1 GΩ with Internal Voltages to 1 kVdc
  • Precision Current Sources / Range Extension from 3 A to 10,000 A with Built-In Precision Current Source and Electronic Switching
  • Wide Range of Ratios: 0.1:1 ~ 100:1, and Up to 2,000,000:1 and More with Range Extension
VIEW PRODUCT
Guildline Instruments High Resistance Measurement Bridge/Meter 6540/6530
Guildline Instruments High Resistance Measurement Bridge 6540 Front
Guildline Instruments High Resistance Measurement Bridge 6540 Back

High Resistance Measurement
Bridge/Meter 6540/6530

  • Bridge and Direct Measurement Modes of Operation
  • Resistance Range 100 kΩ to 20 PΩ
  • “True Ratio” Provides Multi‐Ratios from 1:1 up to 100:1
  • Test Voltages 1 to 1000 V
VIEW 6530
VIEW 6540
6535 1

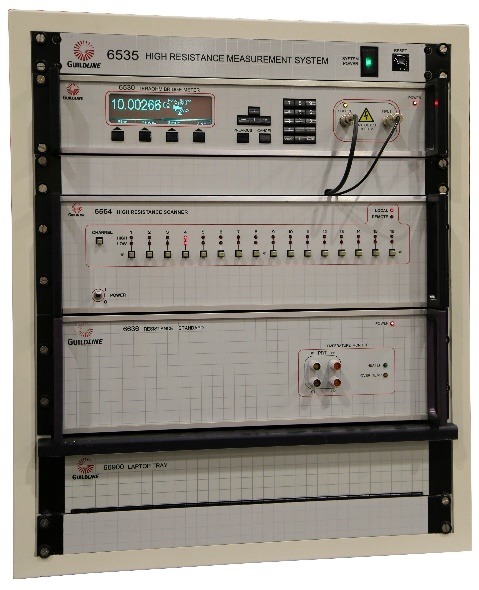

High Resistance and Low Current
Measurement Systems 6535

  • Standard Base Resistance Measurement from 1MΩ to 100 TΩ
  • eXpanded Resistance Measurement Range from 100 kΩ to 20 PΩ
  • eXpanded Performance (and Range) @ 8 ppm for 1 MΩ to 1 GΩ     & < 50 ppm for 10 GΩ to 1 TΩ
  • Highly Controlled Temperature Environment Ensures Reliable Measurements
  • Multi-Ratios up to 1000:1 in Bridge Mode
  • Test Voltages from 1 to 1000 Volts
  • Optional Current Mode to measure currents from 10-2 to 10-13 A
  • Scanner Capabilities to 1000V and 64 Channels
  • Automated procedures for Calibrating High Resistance Decade Boxes
  • Surface and Volume Resistivity Measurements with optional Test Fixtures
  • Simple Artifact Verification Procedure Ensures the 6535 Remains within Specification
VIEW PRODUCT
Guildline Instruments High Current Range Extenders / Sources 6623A

High Current Range Extenders / Sources 6623A

  • Unique Guildline PATENTED Design
  • Dual Design – Extender and Precision DC Source
  • Includes Built-in Precision Current Source with Electronic Polarity Switching
  • Output Current Stability Typically < 10 ppm for 1000 A and Higher – Best in the World!
  • Advanced Modular Design, Over 64 Expandable Outputs in 150 A Increments to 10,000 A, Investment Protection
  • Measures Resistances Down to 0.1 μΩ
  • Automatic Control from 6622A Series Bridge
VIEW PRODUCT
Guildline Instruments 6564 High Resistance Measurement Scanners
Guildline Instruments 6664C Low Thermal Quad Resistance Measurement Scanners

Resistance Measurement Scanners
Model 6664C/6564

  • 8/16-channel input & 2-channel output
  • Gold flashed tellurium copper terminals
  • Thermoelectric Potentials: <20 nV
  • Up to 1000 volts
VIEW 6564
VIEW 6664C


Resistance Measurement METERS

IET Labs LOM-510A MICRO-OHMMETER

LOM-510A MICRO-OHMMETER

  • 1 μΩ resolution, 4½ digits
  • Range: 1 μΩ – 200 Ω
  • 0.02% basic accuracy
  • Costs around 50% less then its peer instruments
VIEW PRODUCT
GENRAD IET Labs 1864-9700 MEGOHMMETER

GENRAD 1864-9700 MEGOHMMETER

  • 200 Test voltages from 10 V to 1090 Vdc
  • Rugged and portable analog megohmmeter
  • Up to 3% accuracy
  • 50 kΩ to 200 TΩ measurement range
  • Reliable high quality instrument designed to last up to 30 years
VIEW PRODUCT
1888 2 Datasheet

1888 MEGOHMMETER/
HIGH RESISTANCE METER

  • Measurements from 1 kΩ to 1000 TΩ, with auto ranging
  • 0.3% measurement accuracy
  • Large color touchscreen and intuitive graphical user interface
  • Programmable test voltage from 1 to 1000 Vdc
  • Automatic test lead zeroing to eliminate connection errors
  • Standard  GPIB, Ethernet and USB interfaces
VIEW PRODUCT
